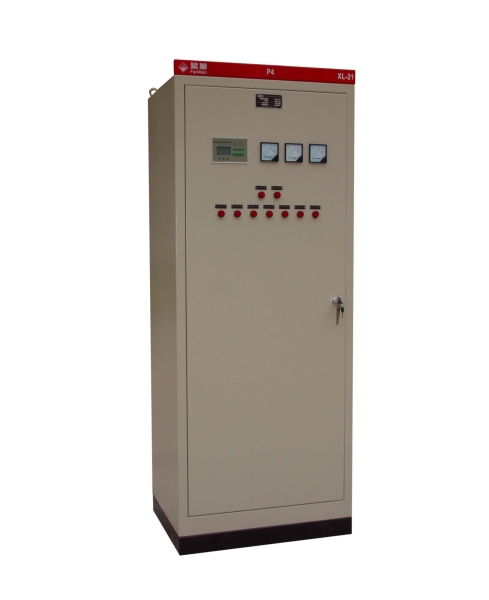

XL-21 系列動力控制柜

XL-21 Series Power Control-gear

性能及用途

(1)  箱體為組裝式結構，安裝孔間距為25MM.門板和頂板均為可拆式，底板開有出線孔，根據要求頂部可開進出線孔。安裝板及側梁可以調節、安裝檢修靈活、方便、結構緊湊、通用性好。

(2) 設備安裝在前面板后，只能看到操作把手。電氣設備受到保護，使用者非常安全。

(3) 該產品用途廣泛，可按需要配裝成不同電氣發性能的控制系統。

(4) 產品適用于發電廠、變電站、工礦企業等動力控制或照明配電用。

(5) 外形尺寸（MM）

     高：1200，1400，1600，1800，2000

          深：300，400，500，600，800

          寬：600，700，800，900，1000

Functions and Applications

(1) The structure of the case body is of fabricated type .the distance between the mounting holes is 25mm from each other .the front plate and the top plate are removable .there is an opening on the bottom place for outgoing feeder .an opening for incoming feeder and outgoing feeder can be made on the top plate if structure, it is equipped with adjustable side beams. Convenient for installation and overhaul. It is compact in structure, and has a good inter changeability.

(2) When the equipment is installed on the front panel, only the operating handle can be seen, the well-protected electrical equipment guarantees the personal safety of the operator.

(3) The product can be assembled into the control systems for different electrical functions.

(4) The product is applied to power control or lighting distribution in power plants, substations, and industrial enterprises.

(5) Overall Dimensions(mm)

Height: 1200,1400,1600,1800,2000

Depth: 300,400,500,600,800
